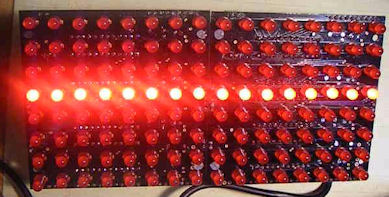

8x8 LED ARRAY Visual Build Instructions By Dataman Aka Charley Jones, PMP Panels8x8@CRJones.Com For ModernDevices.Com
Build Instructions

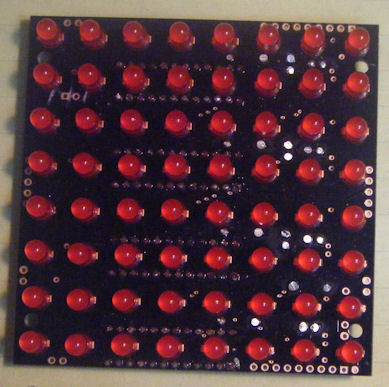

8x8 Panels & Interconnects The heart of the array are these flexible and interconnectible panels of 64 LEDs.  Click the picture at the right for step by step instructions on how to build them.

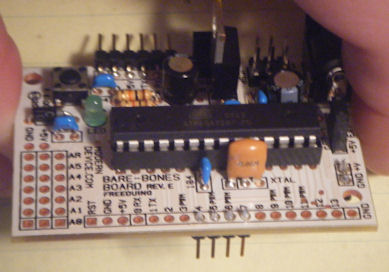

Bare Bones Board (BBB) The array is driven by a single arduino compatible board known as the Bare Bones Board.  Click the picture at the right for step by step instructions on how to build a BBB and connect it to an array.

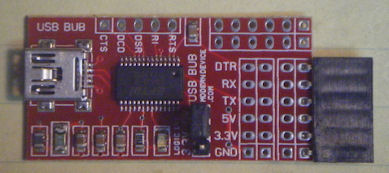

USB Bub The USB Bub is a low cost alternative to the FTDI Cable.  Build instructions can be found by clicking the pictures to the right.

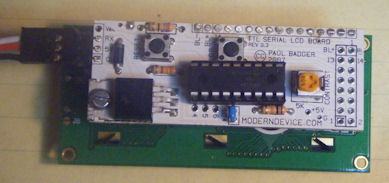

LCD Board A great debugging utility which allows me to see communications to and from the board, even while my computer is connected is the LCD Board.  Build instructions can be found by clicking the picture to the right.
Programming An easy to use library can be found at: http://code.google.com/p/panels8x8
All of these kits and plans can be found at ModernDevice.Com
